Marix EDGE Floor Spring Door Closer

$149.00

TECHNICAL SPECIFICATIONS OF THE MARIX EDGE FLOOR SPRING

  • Corner-mounted spring installed at the door frame (architrave);
  • External body made of 304 stainless steel;
  • Internal closing mechanism made of sintered steel;
  • Operated by a chromium-silicon helical spring;
  • Automotive technology;
  • Weight: 10 ounces;
  • Opening span of up to 1.20 m (3.94 ft);
  • Fully sealed;
  • Comes with a stainless steel hardware kit (3 pieces);
  • 5-year warranty.
SKU: N/A Category:

Description

The innovative Marix spring, well-known for its efficiency in glass doors, is now available for standard wooden doors. With a stainless steel hardware kit, it transforms any door into a sleek corner pivot model, eliminating the need for traditional hinges and overhead springs.

Applications for the Marix Edge in Wooden Doors: The Marix Edge spring is versatile and can be used in various applications, including:

  • Residential entrances (houses and apartments);
  • Interior doors, especially in living rooms, kitchens, and bathrooms;
  • Offices, clinics, hospitals, and commercial establishments;
  • Doors with frames and single-side openings.

Sleek, Harmonious, and Modern Design: The Marix Edge springs feature a discreet, harmonious, and modern design that adds beauty and elegance to any space. Despite their compact size, they are robust and maintenance-free.

Become a Marix Distributor in Ashburn United States

Order now Marix Edge stainless steel #shorts #pivot #doorcloser

Opening and Closing Mechanisms:

  • Opens both ways with a stop function every 90°;
  • Automatic gentle return to closed position;
  • Can rotate 360° when installed at the door’s center.

Package Contents:

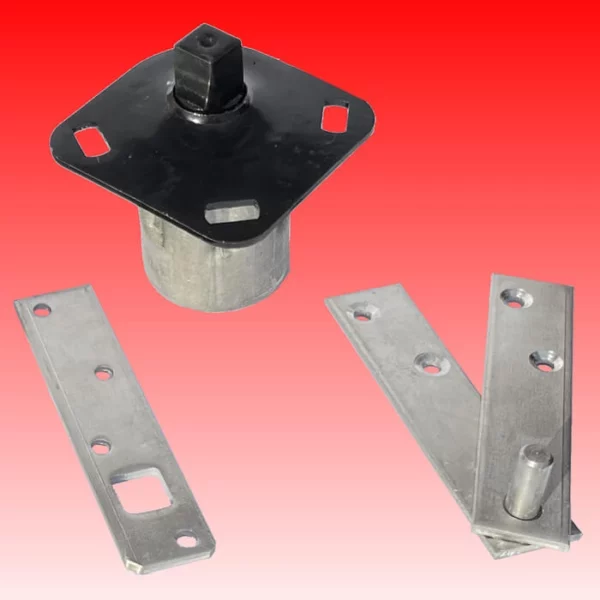

  • 1x Marix Edge Spring;
  • 1x Hardware kit for wooden/aluminum doors (3 pieces);
  • 1x Installation manual for wooden doors;
  • 2x Installation templates;
  • 1x 5-year warranty certificate.
Buy Now





Marix Door Closer Installation

• Includes explanatory guide for step-by-step installation;

• The Marix door closer comes with a cardboard cradle that can be used as a template for marking the locations of the drillings for the installation of the door closer and the fastening screws;

• Average installation time: 30 minutes.

Operation of the Marix EDGE Spring under the Door Frame



Special Features:

  • Modern, discreet design adds elegance to any environment;
  • Durable, maintenance-free chromium-silicon internal mechanism;
  • Safety ensured by the compact dimensions, preventing accidents;
  • Developed after 3 years of research, optimized for size, usability, durability, and cost.

Installation takes approximately 30 minutes, with a step-by-step guide and templates included for easy setup.

MARIX PIVOT DOOR CLOSER INSTALLATION GUIDE

Installation Problems and Solutions

Additional information

Weight N/A
Dimensions N/A
Cover Collor

Black, Stainless Steel

Door Weight

up to 110 lbs., up to 260 lbs.
